BeeEco series heat pumps are quiet and compact. Comfortable heating and hot water supply according to a new efficiency standard.
Heating capacity:up to 18,5 kW. Cooling capacity:up to 15,8 kW
The BeeEco series uses refrigerant R290 with a low global warming potential (GWP=3) and zero impact on the ozone layer (ODP=0). The equipment complies with the highest environmental standards and has an A+++ energy efficiency class even at medium temperature application (+55℃).The BeeEco series is the optimal solution for renovation projects and heating systems that require a high supply temperature (up to +75℃).
High SCOP values are achieved due to the combination of reliable components and inverter control of all system elements:
- compressor;
- fan;
- circulation pump.
The built-in components of the hydraulic circuit greatly simplify the installation and start-up of the equipment.
Touch control panel
A simple and clear user interface is combined with extensive technical settings for service engineers. Controller capabilities:
- Operating modes "Heating" / "Underfloor heating" / "DHW" / "Cooling"
- Weather compensation mode
- Management of additional heat sources for heating and DHW
- Control of additional circulation pumps and valves
- "Quiet mode"
- Possibility of cascade regulation by several heat pumps
- Modbus
Remote control
The Mycond application makes it very easy to control the heat pump and the entire system from a smartphone:
- Switching modes
- Setting temperature
- error monitoring
You can connect many other devices or functions to the Mycond App and get a "smart home" in your smartphone:
- fan coil management
- room temperature control
- motion sensors, cameras, switches
Specifications | Unit | MHCM 06 SU1A | MHCM 12 SU3A | MHCM 18 SU3A |
| Heating capacity (A7/W35) | kW | 6,3 | 12,2 | 18,5 |
| Coefficient of performance COP (A7/W35) | 4,9 | 4,8 | 4,8 | |
| Heating capacity min/max (A7/W35) | kW | 2,9-9,1 | 4,3-15,2 | 7,2-22,1 |
| Maximum heating capacity (A-7/W35) | kW | 5,1 | 9,9 | 14,9 |
| Coefficient of performance COP (A-7/W35) | 3,6 | 3,5 | 3,6 | |
| Cooling capacity (A35/W7) | kW | 5,1 | 9,3 | 15,8 |
| Energy efficiency ratio EER (A35/W7) | 3,1 | 3,0 | 3,0 | |
| Operating ambient temperature (heating) | ℃ | -25…+45 | ||
| Operating ambient temperature (cooling) | ℃ | +16…+45 | ||
| Maximum flow temperature | ℃ | +75 | ||
| Refrigerant type | R290 | |||
| Power supply | V/Hz | 230 / 50 | 400 / 50 | |
| Sound power level | dB(A) | 48 | 50 | 55 |
| Energy Efficiency Class | ||||
| - Low temperature application (W35) | A+++ | |||
| - Medium temperature application (W55) | A+++ | |||
Dimensions

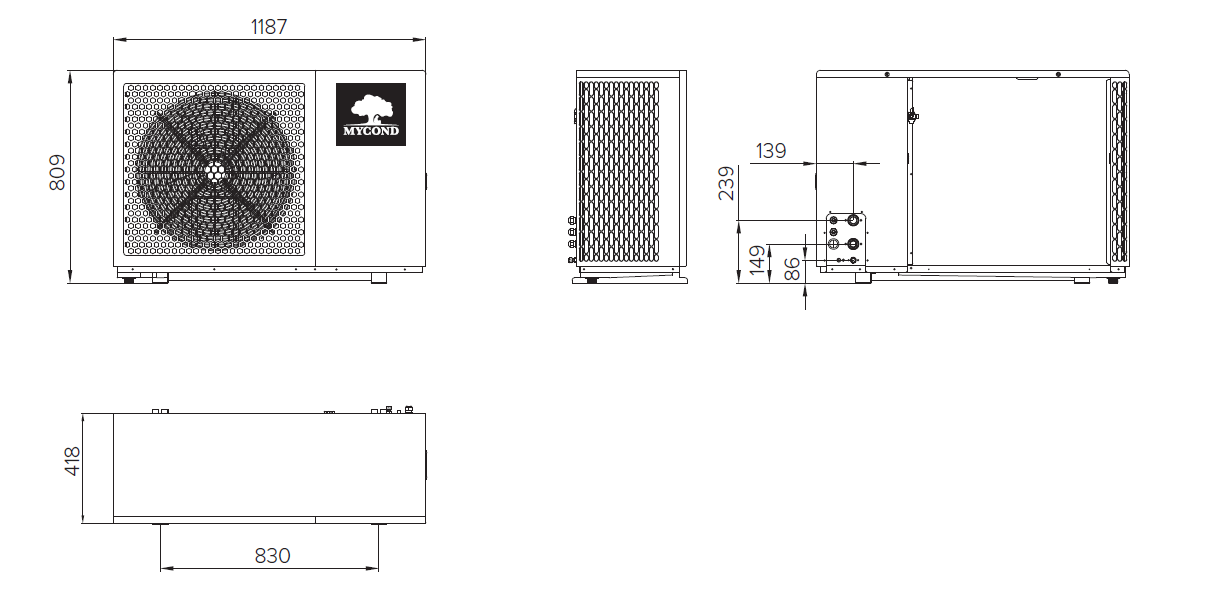

Appearance and dimensions of the MHCM 06 SU1A outdoor unit
Appearance and dimensions of the MHCM 12 SU3A outdoor unit
Appearance and dimensions of the MHCM 18 SU3A outdoor unit
